【2025】Complete Guide to Museum Display Case Design: From Planning to Installation

Museum display cases are far more than simple glass boxes. They are sophisticated environments designed to protect irreplaceable artifacts while presenting them beautifully to visitors. Whether you're designing for a world-class museum, a corporate collection, or a cultural heritage center, understanding the unique requirements of museum-grade display cases is essential.

1. Why Museum Cases Differ from Retail Cases

While jewelry retail cases focus primarily on sales appeal and security, museum display cases must prioritize long-term artifact preservation. The fundamental difference lies in their purpose: retail cases are designed to sell, while museum cases are designed to protect and educate.

Feature	Retail Display Case	Museum Display Case
Primary Goal	Maximize sales appeal	Preserve artifacts for generations
Climate Control	Optional	Essential (humidity, temperature)
UV Protection	Rarely required	Mandatory for light-sensitive items
Sealing Standard	Basic dust protection	Hermetic or near-hermetic sealing
Air Exchange Rate	Not controlled	Less than 0.1 per day (museum standard)
Expected Lifespan	5-10 years	20-50+ years

Conservation Requirements

Conservation is the cornerstone of museum case design. Every material choice, every seal, and every lighting decision must consider its impact on the artifacts inside. Key conservation factors include:

• Material Off-Gassing: All internal materials must be tested to ensure they don't release harmful volatile organic compounds (VOCs) that could damage artifacts
• Humidity Stability: Many artifacts require specific humidity levels (typically 45-55% RH) maintained within ±5%
• Light Exposure: Maximum 50 lux for sensitive textiles and works on paper, up to 200 lux for less sensitive items
• Dust and Pollutant Exclusion: Cases must prevent ingress of particulates and gaseous pollutants

2. Types of Museum Display Cases

2.1 Wall-Mounted Cases

Wall-mounted display cases are ideal for galleries with limited floor space or when creating a narrative flow along walls. They're commonly used for:

• Document and manuscript displays
• Small artifact collections
• Timeline-based exhibitions
• Medal and coin collections

Typical dimensions: 600-2000mm width, 400-800mm height, 200-400mm depth

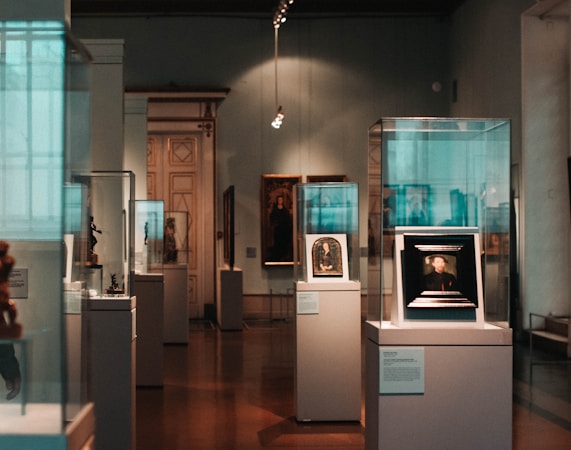

2.2 Freestanding Vitrines

Freestanding vitrines offer 360-degree viewing and serve as focal points in gallery spaces. They range from small pedestal cases to room-sized installations:

• Pedestal Cases: Single-object displays for signature pieces
• Tower Cases: Vertical displays for standing artifacts like sculptures or costumes
• Table Cases: Horizontal viewing for documents, jewelry, or flat artifacts
• Modular Systems: Configurable units that can be rearranged for different exhibitions

2.3 Table Cases (Horizontal Vitrines)

Table cases provide optimal viewing for flat or small three-dimensional objects. Visitors look down into the case, making them perfect for:

• Rare books and manuscripts
• Jewelry and precious objects
• Archaeological artifacts
• Coins and medals

2.4 Full-Room Climate-Controlled Installations

For the most sensitive collections or large-scale displays, entire rooms can be designed as controlled environments. These installations feature:

• Centralized HVAC with museum-grade filtration
• Continuous environmental monitoring
• Vestibule entry systems to prevent air exchange
• Integrated lighting and security systems

"The best museum case is invisible to the visitor – they should see only the artifact, not the technology protecting it."

3. Key Design Considerations

3.1 Lighting Design

Museum lighting must balance visibility with conservation. Modern solutions include:

Lighting Type	Pros	Cons	Best For
Fiber Optic	Zero UV/IR, no heat inside case	Higher initial cost, light source maintenance	Sensitive textiles, organic materials
LED (Museum-Grade)	Energy efficient, long life, tunable	Some models emit trace UV	General museum display
Cold Cathode	Even illumination, long life	Limited dimming, mercury content	Large case interiors
Natural Daylight (Filtered)	True color rendering	Difficult to control, UV management	Less sensitive displays with UV filtering

3.2 Glass Specifications

Glass selection for museum cases requires careful consideration of multiple factors:

Glass Type	UV Blocking	Light Transmission	Application
Standard Low-Iron	Minimal	91%+	General display (requires UV film)
Laminated with UV Interlayer	99%+	85-90%	Sensitive artifacts, security
Anti-Reflective Coated	Varies	97%+	High-visibility installations
Museum-Grade (Full Spec)	99%+ UV, IR filtering	90%+	Premium conservation cases

3.3 Sealing and Humidity Control

Effective sealing is critical for maintaining stable internal environments:

• Gasket Materials: Silicone or EPDM gaskets provide long-term sealing without off-gassing
• Air Exchange Rate: Museum-standard cases should achieve less than 0.1 air changes per day
• Passive Humidity Control: Silica gel or Art-Sorb buffering materials maintain RH without mechanical systems
• Active Humidity Control: For large cases or extreme requirements, integrated humidification/dehumidification systems

3.4 Accessibility for Curators

Cases must allow staff access while maintaining security and environmental integrity:

• Lift-off panels: Entire glass sections can be removed for installation
• Sliding systems: Panels slide to provide access without full removal
• Hinged doors: Traditional access with high-security locks
• Bottom access: Some cases allow installation from below, minimizing dust entry

4. Material Selection

4.1 Frame Materials

The frame structure must be stable, durable, and non-reactive:

• Powder-Coated Steel: Most common, extremely durable, wide color options
• Anodized Aluminum: Lightweight, corrosion-resistant, modern aesthetic
• Stainless Steel: Premium option, excellent longevity, minimal maintenance
• Bronze or Brass: Historic settings, patina develops naturally

4.2 Internal Lining Fabrics

All internal materials must pass conservation testing (Oddy test or equivalent):

• Unbleached Cotton: Neutral pH, good for most applications
• Conservation-Grade Velvet: Luxury appearance, suitable for jewelry and precious objects
• Polyester Fabrics: Stable and inert, various textures available
• Acrylic-Coated Textiles: Sealed surfaces that prevent fiber shedding

"Never use materials inside a museum case that haven't been tested. Even seemingly harmless items like certain paints, adhesives, or wood products can emit damaging compounds."

5. Security Considerations

Museum security goes beyond simple locks. A comprehensive approach includes:

5.1 Physical Security

• Laminated Glass: Resists breaking and holds together even when shattered
• High-Security Locks: Multi-point locking systems, pick-resistant mechanisms
• Anchor Systems: Cases permanently fixed to floor or wall to prevent removal
• Tamper-Evident Seals: Visual indicators of unauthorized access attempts

5.2 Electronic Security

• Glass Break Sensors: Detect vibration patterns indicating breakage attempts
• Door/Panel Contacts: Alert when case is opened
• Motion Sensors: Internal sensors detect unauthorized movement
• CCTV Integration: Cases designed to provide clear camera sightlines

6. Choosing a Museum Case Manufacturer

Selecting the right manufacturer is crucial for long-term success. Evaluate based on:

6.1 Essential Qualifications

1. Museum Experience: Request portfolio of completed museum projects
2. Conservation Standards: Understanding of ICOM and IIC guidelines
3. Testing Capabilities: Ability to test materials for off-gassing (Oddy test compliance)
4. Environmental Performance: Documented air exchange rates and RH performance
5. Global Installation Experience: Proven track record of international delivery and installation

6.2 Questions to Ask

• What is your case's documented air exchange rate?
• Do you provide material testing certificates?
• What is your warranty on seals and gaskets?
• Can you provide references from similar museum projects?
• Do you offer installation supervision or training?
• What is your lead time for custom projects?

7. Case Studies

7.1 National Museum Jewelry Gallery

A recent project involved designing 45 climate-controlled cases for a national museum's precious metals collection:

• Challenge: Display gold artifacts from 3000 BCE with strict conservation requirements
• Solution: Custom vitrines with 0.05 air changes/day, integrated fiber optic lighting (50 lux max), passive humidity buffering at 45% RH
• Result: Zero environmental incidents in 5 years of operation

7.2 Private Corporation Heritage Center

A global luxury brand commissioned display cases for their heritage collection:

• Challenge: Showcase vintage jewelry in a high-traffic visitor center
• Solution: Anti-reflective museum glass, LED lighting with tunable color temperature, high-security laminated construction
• Result: Award-winning installation featured in architectural publications

8. Frequently Asked Questions

What is the typical lead time for custom museum cases?

Standard projects: 8-12 weeks. Complex custom designs or large-scale installations: 16-24 weeks. Always confirm timelines early in project planning.

How often do museum cases require maintenance?

Gaskets and seals should be inspected annually. Silica gel or humidity buffering materials typically need regeneration or replacement every 6-24 months depending on conditions. Lighting systems may need servicing every 3-5 years.

What certifications should a museum case manufacturer have?

Look for ISO 9001 quality management, documented compliance with ICOM guidelines, and the ability to provide material testing certificates (Oddy test or equivalent).

Can existing retail cases be upgraded for museum use?

In most cases, no. The fundamental design differences (sealing, materials, climate control provision) make retrofitting impractical. Purpose-built museum cases are strongly recommended.

Conclusion

Museum display case design is a specialized discipline that combines aesthetics, conservation science, security engineering, and visitor experience. The right case protects artifacts for future generations while presenting them beautifully today.

Whether you're planning a new museum gallery, upgrading existing cases, or designing a private collection display, working with experienced manufacturers who understand conservation requirements is essential.
